Rectangle & Ellipse Module in Ruby

[chackl]

Hello!

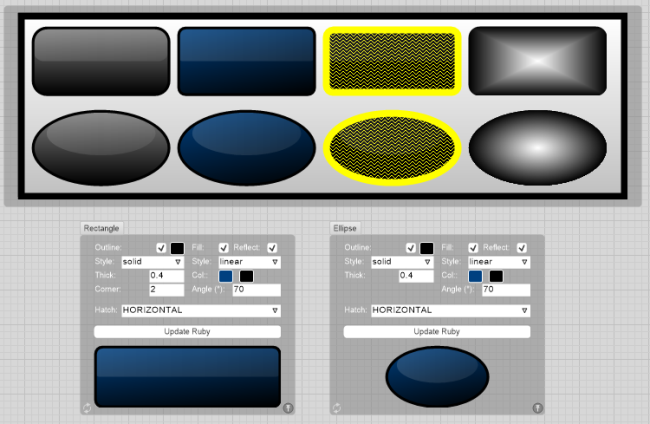

Today a was making some GUI in ruby and as a "Lession" i did a port of the old Rectangle & Ellipse Modules from Synthmaker V3 / FlowStone V2


As you see i also did properties for config

What is new is the Hatch-Brush.

If you have any ideas for updates/upgrades please write here

Base-Module - Free4Use in any Project.

For all Ruby nerds - please take a look how i did port all variables from te properties to the main module - maybe there is a better solution - if someone could do that


Best Regards

[Jay]

very nice m8! cheers for these they will come in really handy! more please!

Best Regards

[RJHollins]

Very nice modules and coding chackl !

Thanks for sharing your work. These are items needed for most any project.

Thanks again !!

[billv]

Very handy at the moment...Thanks for sharing.
Cheers.

[trogluddite]

Hi chackl - nice stuff, bringing some of the new Ruby graphics options to a simple module.

Here's my version of the "options hasher". The @vals data is stored using the saveState/loadState methods, so there's no need for the 'input scanner, so there are far fewer events and triggers kicking about...

Options Hasher.fsm

(1.31 KiB) Downloaded 1372 times

PS) Ruby instance variables (NOT local variables) can always be read, even before they are declared - returning nil if undefined. And there is a shorthand method for testing nils, ".nil?"
So...

Code: Select all

defined?(@vars) == nil

...can be simply written as...

Code: Select all

@vars.nil?

The "||=" that's used in my code is also very handy in situations like this. It's usually known as "OR-equals" - if the variable is undefined, nil or false, it gets assigned the right hand value, otherwise the old value is kept. Just take care if the variable is holding a boolean (true/false) value, though, as 'false' would be overwritten!

[chackl]

Thanks for the example i'll update it within the next version

And thanks for the little ruby lesson - I've just began to understand ruby and i'm now experimenting with custom objects and classes.

Thank you

[billv]

@chackl..... may have a little bug...
if change fill style to 'solid'
.no color changes possible.... no hatching either... ??..

[nix]

love the hatching brushes mr. Hackl
is it possible somehow to define the size of the hatches?

[chackl]

love the hatching brushes mr. Hackl
is it possible somehow to define the size of the hatches?

Thanks
Well i did not find anything - if someone finds a metode i can add it

[chackl]

@chackl..... may have a little bug...
if change fill style to 'solid'
.no color changes possible.... no hatching either... ??..

Well a hatch allways needs 2 colors
So Hatch is an addition to solid/Linear/Radial.
