Bitmasking in DSP Code

Postby martinvicanek » Wed Sep 20, 2017 9:20 am

Howdee,

the subject of using bitmasks in FS e.g. to implement logical structures comes up every now and then so I thought perhaps a tutorial might be helpful to have. I plan to do this in a number of installments so this is only the first part of a series. Please feel free to interrupt me and post questions.

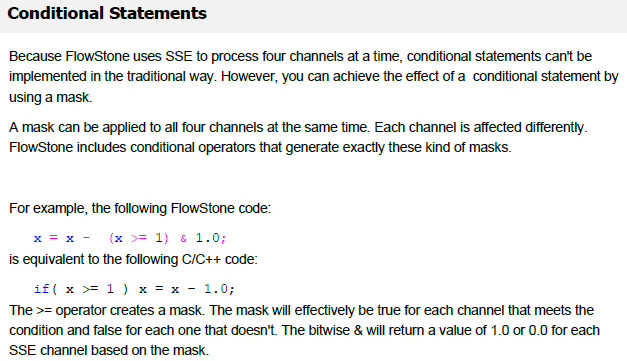

It is always a good idea to consult the User Guide first, so let me start with that:

Let's elaborate a bit. There is the & operator, a "bitwise and" for the arguments left and right of it. In the example given, one argument is a boolean expression (x >= 1) and the other is a float number 1.0. Both have a 32 bit representation in FS per SSE channel. The boolean expression is either true or false:

Code: Select all
true  = 11111111111111111111111111111111
false = 00000000000000000000000000000000


Float numbers are represented as bit patterns according to the IEEE 754 standard, which for the example happens to be

Code: Select all
1.0 = 00111111100000000000000000000000


"Bitwise and" means that each of the 32 binary digits is evaluated to 1 if both those digits are 1, and is zero otherwise. At the end of the day, all you need to remember is the following:

Code: Select all
number & true  = number
number & false = 0


By the way, the order of the arguments does not matter, so bool & number is the same as number & bool.
User avatar
martinvicanek

Posts: 981
Joined: Sat Jun 22, 2013 8:28 pm

Re: Bitmasking in DSP Code

Postby Spogg » Wed Sep 20, 2017 11:59 am

This is going to be interesting and useful! :D

Thanks

Spogg
User avatar
Spogg

Posts: 2316
Joined: Thu Nov 20, 2014 4:24 pm
Location: Birmingham, England

Re: Bitmasking in DSP Code

Postby RJHollins » Wed Sep 20, 2017 6:21 pm

Time for some schoolin'. Thanks Martin 8-)
RJHollins

Posts: 1385
Joined: Thu Mar 08, 2012 7:58 pm

2. Examples

Postby martinvicanek » Wed Sep 20, 2017 10:33 pm

So let's look at some working examples.
Our first example will be a (naive, non bandlimited) sawtooth oscillator with frequency f and the waveform going from -1 to +1.

C code would look something like this:
Code: Select all
float f = 0.1;
float saw = 0;

saw = saw + f;
if (saw > 1.0) saw = saw - 2.0;

This translates to the following FS code:
Code: Select all
float f = 0.1;
float saw = 0;

saw = saw + f;
saw = saw - 2&(saw > 1);
Easy, isn't it?

Next consider a simple index ramp. A C code would look something like this:
Code: Select all
integer i = 0;
integer n = 10;

i = i + 1;
if (i >= n) i = 0;

The FS code box offers only floating point declarations, so it would read
Code: Select all
float i = 0;
float n = 10;

i = i + 1;
i = i&(i < n);
Note that we have negated the comparison in FS in this case.

So how do we implement an if-then-else structure? For instance
Code: Select all
if (x > y) then z = a;
else z = b;

In FS you could write
Code: Select all
z = a&(x > y) + b&(x <= y);

This expression is correct, however it involves two comparisons. A more efficient implementation is
Code: Select all
z = b + (a - b)&(x > y);
which requires only one comparison. To see why this gives the same result assume (x > y) is true, then z = b + (a - b) = a. If, on the other hand, (x > y) is false then z = b + 0 = b.

Note: You could also write
Code: Select all
z = a + (b - a)&(x <= y);
Last edited by martinvicanek on Thu Sep 21, 2017 7:03 am, edited 1 time in total.
User avatar
martinvicanek

Posts: 981
Joined: Sat Jun 22, 2013 8:28 pm

Re: Bitmasking in DSP Code

Postby tulamide » Thu Sep 21, 2017 5:33 am

First of all: Thank you for taking the time to start at the very beginning!

Unfortunately, I already am overchallenged with the last two code examples. While it is easy to comprehend when it is already there, I just don't know how I would get from the two-condintional version to the one-conditional version on my own. I'm missing the steps involved to get from
Code: Select all
z = a&(x > y) + b&(x <= y);

to
Code: Select all
z = b + (a - b)&(x > y);


Because that doesn't come naturally to me. But exactly those are the things that make code more efficient.
tulamide

Posts: 2028
Joined: Sat Jun 21, 2014 2:48 pm
Location: Germany

Re: Bitmasking in DSP Code

Postby martinvicanek » Thu Sep 21, 2017 6:59 am

Look at it this way: In the instruction
Code: Select all
z = b + (a - b)&(x > y);
the first term b is the "default" value whereas the second term (a - b) represents a correction in the case that the condition (x > y) is true. In prose you could say:

If nothing else then set z equal to b.
However, in the event that (x > y) replace it by a.
Do so by adding a and subtracting b.


Of course you can reverse the roles of a and b if you prefer a to be the "default":
Code: Select all
z = a + (b - a)&(x <= y);

Did it help?
User avatar
martinvicanek

Posts: 981
Joined: Sat Jun 22, 2013 8:28 pm

Re: Bitmasking in DSP Code

Postby adamszabo » Thu Sep 21, 2017 1:09 pm

However to make things even more complicated, the first example with two comparisons is actually more efficient in assembly I believe. In assembly it could look like this:

Code: Select all
z = a&(x > y) + b&(x <= y);

movaps xmm0,x;       //we are moving 'x' to register xmm0
cmpps xmm0,y,2;      //we compare if x is <= y then we get the bitmask, either true or false
movaps xmm1,xmm0; //we store this bitmask to another register
andps xmm0,b;         //b value will be active if condition is met (and)
andnps xmm1,a;       //a is active if the inverse condition is met (and not)
andps xmm0,xmm1;   //then we choose the correct value


You can see we used only one comparison and also andnps so we didnt use any addition or subtraction which use more cpu than 'and' or 'and not'
adamszabo

Posts: 426
Joined: Sun Jul 11, 2010 7:21 am

Re: Bitmasking in DSP Code

Postby martinvicanek » Thu Sep 21, 2017 6:55 pm

Adam, you are miles ahead of me! :)
Yes, if you do it in assembly you have more options, for instance you can use andnps. But watch out, the negation applies to the first argument! (You have that right in your code). The other thing is that it may not work with older FS versions, dunno when they added that opcode.

In (older) textbooks you read that bit operations are faster than floating point operations (and that floating point adds are faster than multiplies). I am not sure if this is still valid with modern CPUs, so I tested your ASM implemetation against my z = b + (a - b)&(x > y); ASM implementation - and they were tie!

Anyway, let's not frighten the audience with assembly nitpicking, there is still some DSP code material ahead. ;)
User avatar
martinvicanek

Posts: 981
Joined: Sat Jun 22, 2013 8:28 pm

Re: Bitmasking in DSP Code

Postby RJHollins » Thu Sep 21, 2017 9:20 pm

and we [I] are easily frightened ! :o
RJHollins

Posts: 1385
Joined: Thu Mar 08, 2012 7:58 pm

3. More Booleans and the "or" Operator

Postby martinvicanek » Fri Sep 22, 2017 6:44 am

The arguments of of the & operator need not be a number and a boolean, respectvely. For instance you might want to combine two booleans. An example is the following zero crossing detector:
Code: Select all
streamin in;    // current sample
float in1;      // previous sample
float zx;       // boolean, true if zero crossing just happened

zx  = (in > 0)&(in1 <= 0);
in1 = in;
Note that FS allows you to store booleans, even though the declared datatype is float.

In addition to the & operator, FS also has an "or" operator denoted by |. This can be useful to combine boolean expressions. Suppose you want to start off a timer triggered by an impulse at the input. you could use the above expression for zero crossing, however it is more efficient to work with the negated expression (in <= 0)|(in1 > 0):
Code: Select all
streamin in;    // input trigger pulse
float in1;      // previous input value
float time;     // elapsed time (in samples) since last trigger

time = time + 1;
time = time&((in <= 0)|(in1 > 0));   // reset timer on trigger
in1  = in;
