SparkFun Serial 7 Segment Display
1 post
• Page 1 of 1
SparkFun Serial 7 Segment Display
by admin » Wed Jan 16, 2013 12:58 pm
Here's an example on how to comunicate with the SparkFun serial seven segment display:https://www.sparkfun.com/products/11441?
These are available in Reg, Blue, Green, Yellow & White
We have connected it to the PC using a 5V FTDI USB-serical cable: https://www.sparkfun.com/products/9717?
The wiring is very simple and can be seen here:
In this example we have shown how to send an +/- number to the display with a flashing colon. It is also possible to send alphanumeric characters to the display.

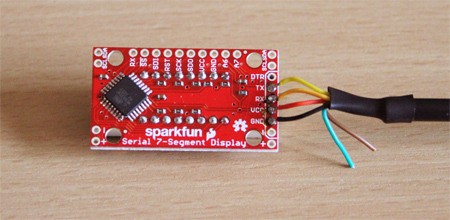

- SparkFun LED Display LR.jpg (68.93 KiB) Viewed 76653 times
These are available in Reg, Blue, Green, Yellow & White
We have connected it to the PC using a 5V FTDI USB-serical cable: https://www.sparkfun.com/products/9717?
The wiring is very simple and can be seen here:
- SparkFun LED Display Wiring LR.jpg (88.35 KiB) Viewed 76653 times
- LED Display clip.png (118.47 KiB) Viewed 76652 times
In this example we have shown how to send an +/- number to the display with a flashing colon. It is also possible to send alphanumeric characters to the display.
- Attachments
-
LED Display.fsm- (9.36 KiB) Downloaded 5080 times
-
